    Inductor: ferrite; 22uH; Ioper: 12A; 5.8mΩ; ±20%; Isat: 31A
Inductor: ferrite; 22uH; Ioper: 12A; 5.8mΩ; ±20%; Isat: 31A

7G31A-220M

Reference: 7G31A-220M

15.99 zł
Tax included

Inductor: ferrite; 22uH; Ioper: 12A; 5.8mΩ; ±20%; Isat: 31A

Power Inductors for Class-D Amplifier

Quantity

Inductor: ferrite; 22uH; Ioper: 12A; 5.8mΩ; ±20%; Isat: 31A

Power Inductors for Class-D Amplifier

Specification:

Manufacturer: SAGAMI
Type of inductor: ferrite
Inductance: 22µH
Operating current: 12A
Resistance: 5.8mΩ
Tolerance: ±20%
Saturation current: 31A

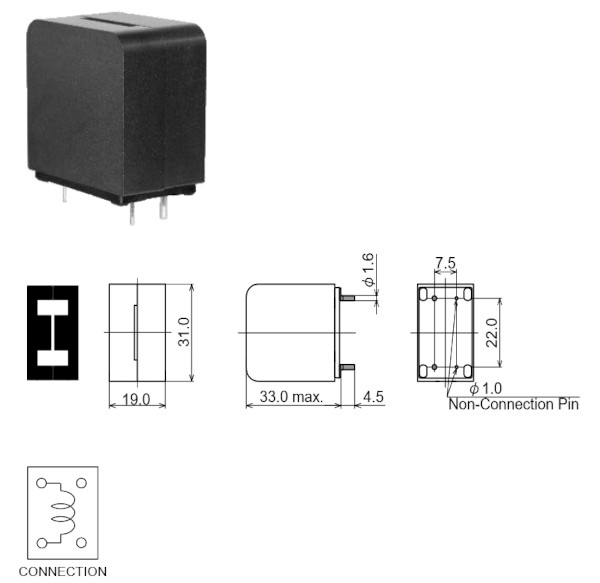

Body dimensions: 33x31x19mm
Operating temperature: -40...125°C
Conform to the norm: AEC-Q200


7G31A-220M

Download

7G31A-220M

7G31A-220M

Download (255.87KB)
