HCPL-3120-000E
Reference: HCPL-3120-000E
11.07 zł
Tax included
Optocoupler; 2.5 Amp Output Current; SMD; Ch:1; OUT: IGBT driver; 3.75kV; DIP-8; 35kV/μs
2.5 Amp Output Current IGBT Gate Drive Optocoupler
Optocoupler; 2.5 Amp Output Current; SMD; Ch:1; OUT: IGBT driver; 3.75kV; DIP-8; 35kV/μs
The HCPL-3120 contains a GaAsP LED while the HCPL-J312
and the HCNW3120 contain an AlGaAs LED. The LED
and the HCNW3120 contain an AlGaAs LED. The LED
is optically coupled to an integrated circuit with a power
output stage. These optocouplers are ideally suited for
driving power IGBTs and MOSFETs used in motor control
inverter applications.
Applications
- IGBT/MOSFET gate drive
- AC/Brushless DC motor drives
- Industrial inverters
- Switch mode power suppliestransistor IGBTs
and MOSFETs used in inverter motor control applications.

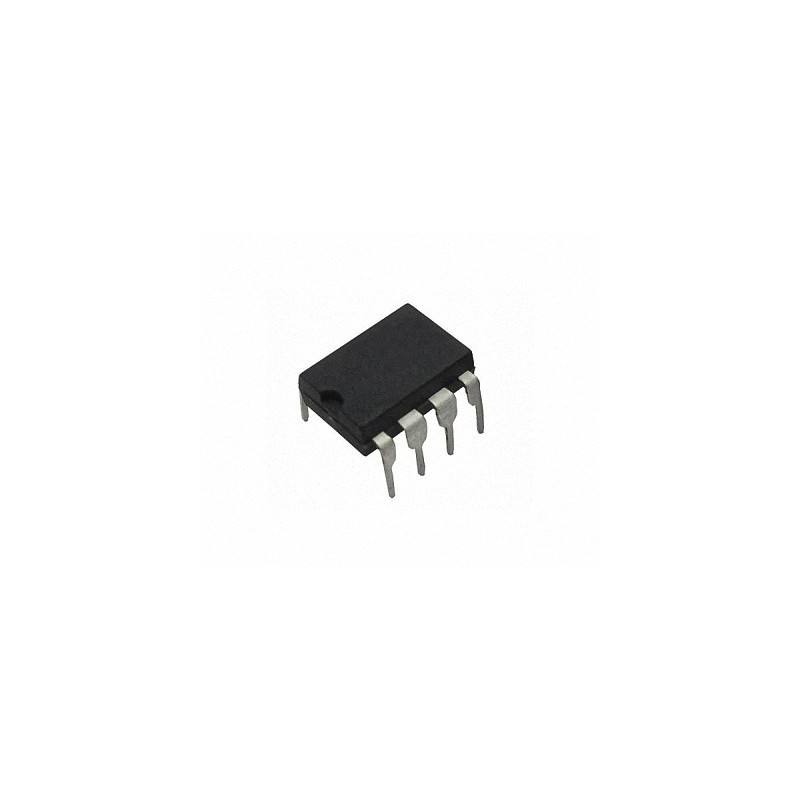

HCPL-3120-000E
Data sheet
- Case
- DIP-8
- Mounting
- THT
- Manufacturer
- AVAGO Technologies
- Output current
- 2.5A
- Number of channels
- 1
- Operating temperature
- -40...+100°C
- Fall Time
- 100ns
- Rise Time
- 100ns
- Output Type
- IGBT driver
- Forward Voltage Vf
- 1.5V
- Forward Current If
- 16mA
- Reverse Voltage Vr
- 5V
- Operating Supply Voltage
- 10-30V DC
- Isolation Voltage
- 3.75kVrms
- Slew rate
- 35kV/μs
- Propagation Delays Typ.- tPHL
- 300ns
- Propagation Delays Typ.- tPLH
- 300ns
Optocoupler; 2.5 Amp Output Current; SMD; Ch:1; OUT: IGBT driver; 3.75kV; DIP-8; 35kV/μs
