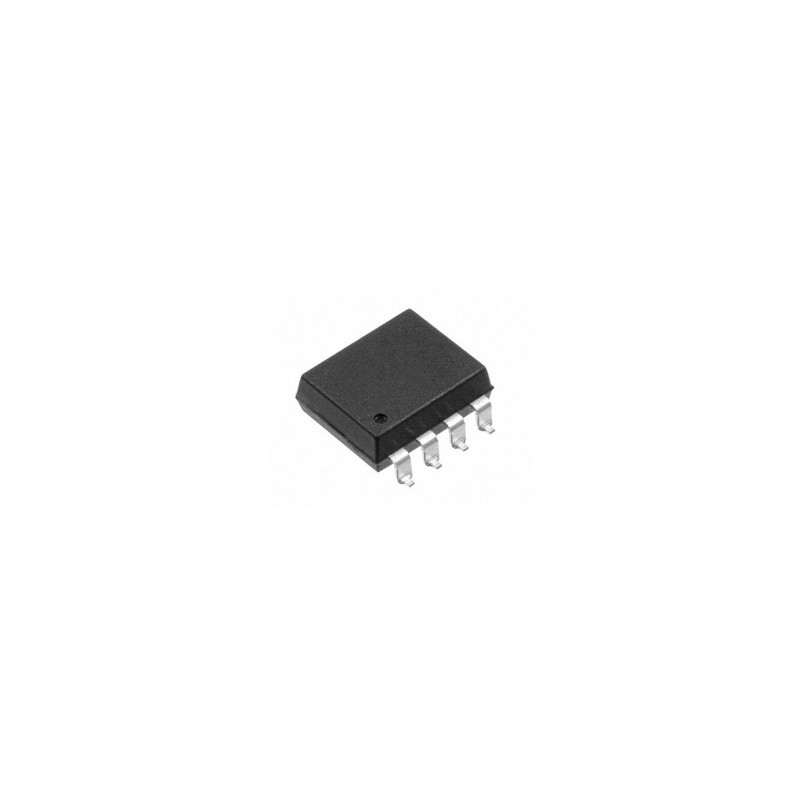

    HCNR201-300E | Optocoupler; Ch:1; OUT: Photodiode; 5kV; Gull wing 8
HCNR201-300E | Optocoupler; Ch:1; OUT: Photodiode; 5kV; Gull wing 8

HCNR201-300E

Reference: HCNR201-300E

12.30 zł
Tax included

Optocoupler; SMD; Ch: 1; OUT: photodiode; 5kV; Gull wing 8

Quantity

Optocoupler; SMD; Ch: 1; OUT: photodiode; 5kV; Gull wing 8

The HCNR200/201 high-linearity analog optocoupler
consists of a high-performance AlGaAs LED that illumi
nates two closely matched photodiodes. The input pho
todiode can be used to monitor, and therefore stabilize,
the light output of the LED.
-K3 (IPD2/IPD1) transfer gain
HCNR200: ±15%
HCNR201: ±5%


Applications
- Low cost analog isolation
- Telecom: Modem, PBX
- Industrial process control:
   Transducer isolator
   Isolator for thermo couples 4mA
   to 20mA loop isolation
- SMPS feedback loop, SMPS feedforward
- Monitor motor supply voltage
- Medical


HCNR201-300E

Data sheet

Case
Gull wing 8
Mounting
SMD
Manufacturer
AVAGO Technologies
Number of channels
1
Operating temperature
-40...+100°C
Output Type
Photodiode
Forward Voltage Vf
1.6V
Forward Current If
20mA
Reverse Voltage Vr
2.5V
Isolation Voltage
5kVrms

Download

HCNR200, HCNR201

HCNR200, HCNR201

Download (232.35KB)
