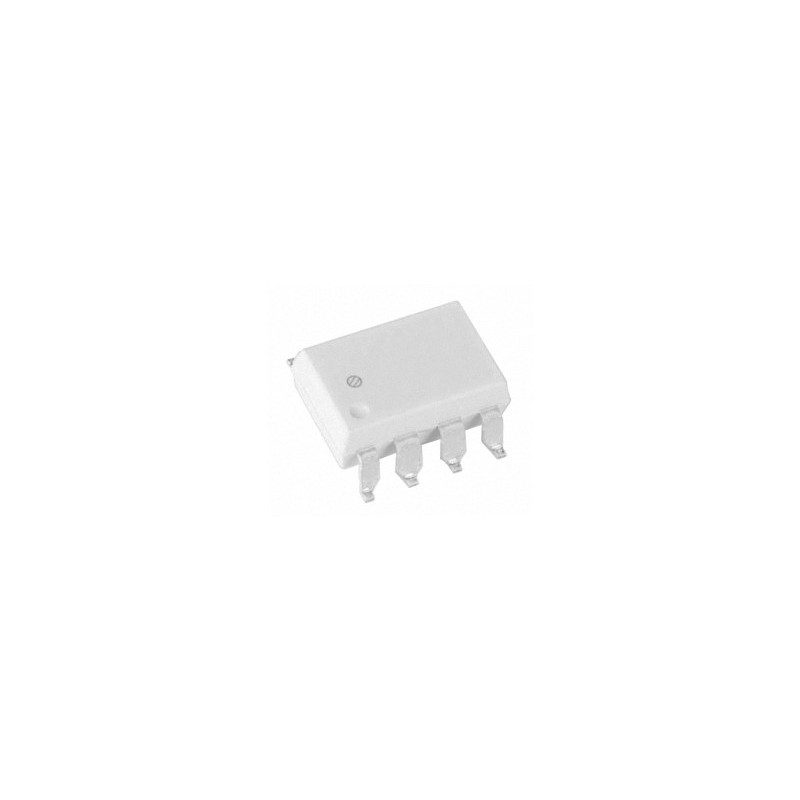

    HCPL-7800A-300E | Optocoupler; OUT: isolation amp; 3,75kV; Gull wing 8
HCPL-7800A-300E | Optocoupler; OUT: isolation amp; 3,75kV; Gull wing 8

HCPL-7800A-300E

Reference: HCPL-7800A-300E

34.44 zł
Tax included

Optocoupler; SMD; Ch:1; OUT: isolation amplifier; 3.75kV; Gull wing 8
HCPL-7800A for precision applications with gain tolerance of ±1%

Quantity

Optocoupler; SMD; Ch:1; OUT: isolation amplifier; 3.75kV; Gull wing 8

The HCPL-7800(A) isolation amplifier family was designed
for current sensing in electronic motor drives.
HCPL-7800A is recommended for precision applicationss with gain tolerance of ±1%


Applications
• Motor Phase and Rail Current Sensing
• Inverter Current Sensing
• Switched Mode Power Supply Signal Isolation
• General Purpose Current Sensing and Monitoring
• General Purpose Analog Signal Isolation


HCPL-7800A-300E

Data sheet

Case
Gull wing 8
Mounting
SMD
Manufacturer
AVAGO Technologies
Number of channels
1
Operating temperature
-40...+100°C
Output Type
Isolation amplifier
Operating Supply Voltage
5V DC
Isolation Voltage
3.75kVrms
Slew rate
15kV/μs
Bandwidth/throughput
100kHz
Gain tolerance
±1%

Download

HCPL-7800A, 7800

HCPL-7800A, 7800

Download (171.94KB)
