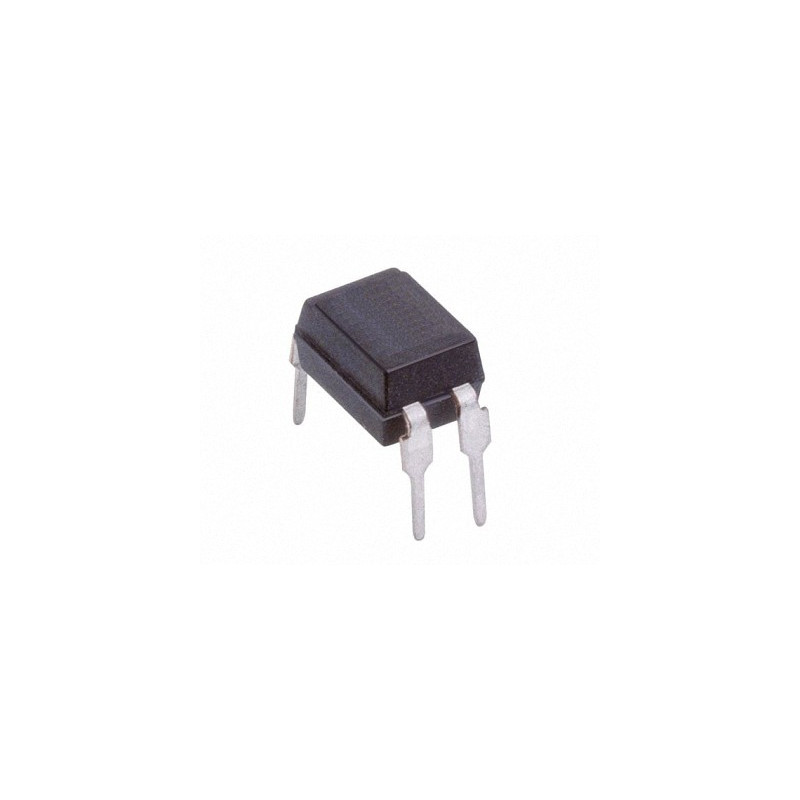

HCPL-817-000E
Reference: HCPL-817-000E
1.23 zł
Tax included
Optocoupler; THT; Ch:1; OUT: Transistor; Uinsul: 5kV; Uce: 70V; DIP4
Optocoupler; THT; Ch:1; OUT: Transistor; Uinsul: 5kV; Uce: 70V; DIP4

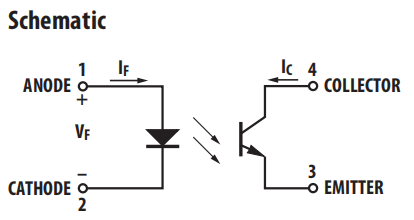

The HCPL-817 contains a light emitting diode optically
coupled to a phototransistor. It is packaged in a 4-pin DIP
package and available in wide-lead spacing option and
lead bend SMD option.
Applications
• Signal transmission between circuits of difffferent
potentials and impedances
• I/O interfaces for computers
• Feedback circuit in power supply
HCPL-817-000E
Data sheet
- Case
- DIP-4
- Mounting
- THT
- Manufacturer
- AVAGO Technologies
- Frequency
- 80kHz
- Number of channels
- 1
- Operating temperature
- -40...+100°C
- Collector-Emitter Voltage VCEO
- 70V
- Fall Time
- 3μs
- Rise Time
- 18μs
- Output Type
- Transistor
- Forward Voltage Vf
- 1.2V
- Isolation Voltage
- 5kVrms
- CTR@If
- 50-600%@5mA
Optocoupler; THT; Ch:1; OUT: Transistor; Uinsul: 5kV; Uce: 70V; DIP4
