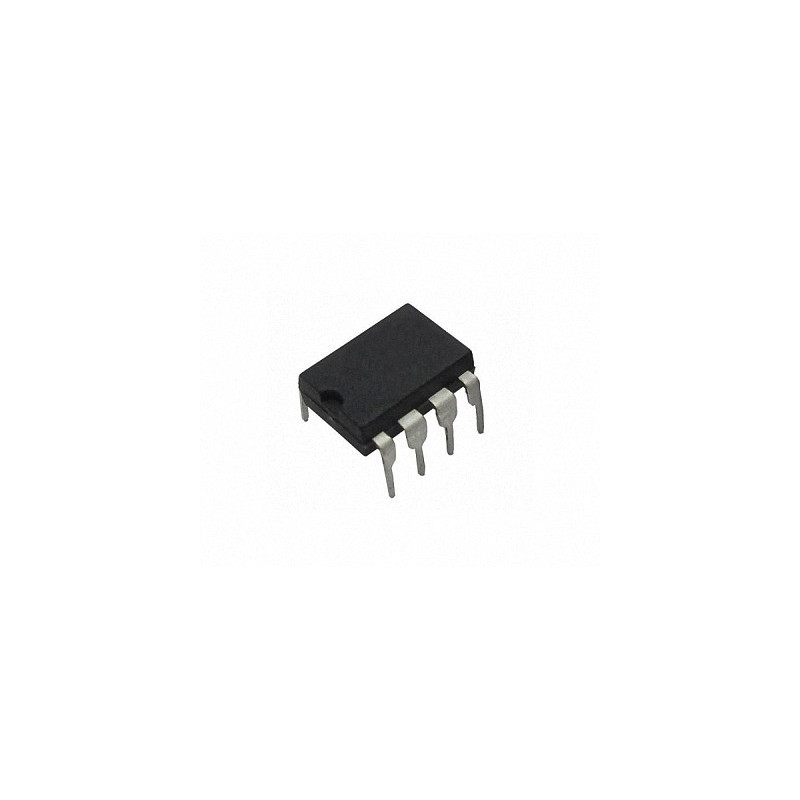

HCPL-3700-000E
Reference: HCPL-3700-000E
15.99 zł
Tax included
Optocoupler; THT; Ch:1; OUT: Transistor; Uce: 20V; 3,75kV; DIP8
Optocoupler; THT; Ch:1; OUT: Transistor; Uce: 20V; 3,75kV; DIP8
The HCPL-3700 are voltage/current threshold detection optocouplers.
The devices utilize threshold sensing input buffer ICs which permit
control of threshold levels over a wide range of input voltages with
a single external resistor.
The devices utilize threshold sensing input buffer ICs which permit
control of threshold levels over a wide range of input voltages with
a single external resistor.
Applications
• Limit switch sensing
• Low voltage detector
• AC mains and DC link voltage detection
• Relay contact monitor
• Relay coil voltage monitor
• Current sensing
• Microprocessor interfacing
HCPL-3700-000E
Data sheet
- Case
- DIP-8
- Mounting
- THT
- Manufacturer
- AVAGO Technologies
- Frequency
- 4kHz
- Number of channels
- 1
- Operating temperature
- -40...+100°C
- Fall Time
- 300ns
- Rise Time
- 20µs
- Output Type
- Transistor
- Operating Supply Voltage
- 2-18V DC
- Isolation Voltage
- 3.75kVrms
- Slew rate
- 4kV/μs
- Propagation Delays Typ.- tPHL
- 4.0µs
- Propagation Delays Typ.- tPLH
- 10.0µs
Optocoupler; THT; Ch:1; OUT: Transistor; Uce: 20V; 3,75kV; DIP8
