    HCNW4506-500E | Optocoupler; OUT: transistor; 5kVrms; 30kV/µs; Gull wing 8
HCNW4506-500E | Optocoupler; OUT: transistor; 5kVrms; 30kV/µs; Gull wing 8

HCNW4506-500E

Reference: HCNW4506-500E

11.07 zł
Tax included

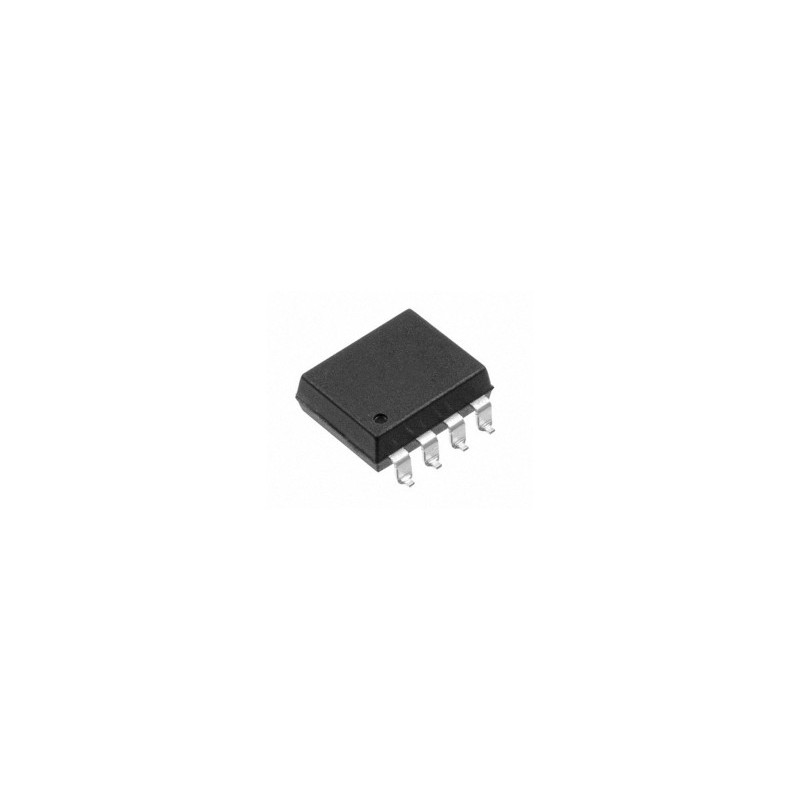

Optocoupler; SMD; Ch:1; OUT: transistor; 5kVrms; 30kV/µs; Gull wing 8 (Widebody)

Quantity

Optocoupler; SMD; Ch:1; OUT: transistor; 5kVrms; 30kV/µs; CTR@If: 44-90%@10mA; Gull wing 8 (Widebody)
Intelligent Power Module and Gate Drive Interface Optocouplers

The HCPL-4506 and HCPL-0466 contain a GaAsP LED while
the HCPL-J456 and the HCNW4506 con­tain an AlGaAs LED.
The LED is optically coupled to an inte­grated high gain
photo detector. Minimized propagation delay difference
between devices makes these optocouplers excellent so-
lutions for improving inverter efficiency through reduced
switching dead time.

Applications
• IPM isolation
• Isolated IGBT/MOSFET gate drive
• AC and brushless DC motor drives
• Industrial inverters





HCNW4506-500E

Data sheet

Case
Gull wing 8 (Widebody)
Mounting
SMD
Manufacturer
AVAGO Technologies
Output current
15mA
Number of channels
1
Operating temperature
-40...+100°C
Output Type
Open collector
Forward Voltage Vf
1.6V
Forward Current If
25mA
Reverse Voltage Vr
3V
Operating Supply Voltage
4.5-30V DC
Isolation Voltage
5kVrms
Slew rate
30kV/μs
Propagation Delays Typ.- tPHL
200ns
Propagation Delays Typ.- tPLH
400ns
CTR@If
44-90%@10mA

Download

HCPL-4506, J456, 0466, HCNW4506

HCPL-4506, J456, 0466, HCNW4506

Download (232.2KB)
