HCPL-M611-500E
Reference: HCPL-M611-500E
9.84 zł
Tax included
Optocoupler; SMD; Ch:1; OUT: gate; 3.75kV; SO5; 15kV/μs
Optocoupler; SMD; Ch:1; OUT: gate; 3.75kV; SO5; 15kV/μs

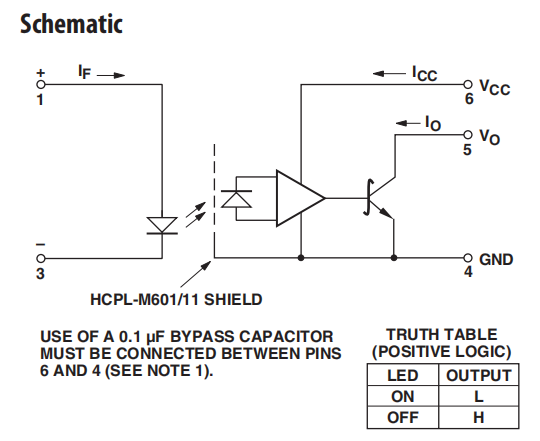

The HCPL-M600/01/11 optically coupled gates combine
a GaAsP light emitting diode and an integrated high
gain photon detector. The output of the detector I.C.
is an Open-collector Schottky-clamped transistor.
a GaAsP light emitting diode and an integrated high
gain photon detector. The output of the detector I.C.
is an Open-collector Schottky-clamped transistor.
Applications
- Isolated Line Receiver
- Simplex/Multiplex Data Transmission
- Computer-Peripheral Interface
- Microprocessor System Interface
- Digital Isolation for A/D, D/A Conversion
- Switching Power Supply
- Instrument Input/Output Isolation
- Ground Loop Elimination
- Pulse Transformer Replacement
HCPL-M611-500E
Data sheet
- Case
- SO5
- Mounting
- SMD
- Manufacturer
- AVAGO Technologies
- Output current
- 50mA
- Number of channels
- 1
- Operating temperature
- -40...+100°C
- Fall Time
- 10ns
- Rise Time
- 24ns
- Output Type
- gate
- Forward Voltage Vf
- 1.5V
- Forward Current If
- 20mA
- Reverse Voltage Vr
- 5V
- Operating Supply Voltage
- 5V DC
- Isolation Voltage
- 3.75kVrms
- Slew rate
- 15kV/μs
- Propagation Delays Typ.- tPHL
- 50ns
- Propagation Delays Typ.- tPLH
- 48ns
Optocoupler; SMD; Ch:1; OUT: gate; 3.75kV; SO5; 15kV/μs
